Aviator Sunglasses

July 22, 2006

I’m sunglass obsessed. It all started when I started flying model airplanes and wanted a pair of sunglasses that would shield my eyes from the glare of the sun (or worse, a light overcast), while still letting me clearly see my model. Getting my full-scale private pilot license only made things worse. I just had to have the very best sunglasses that one could get.

Zurich

My first try was the Zurich R/C sunglasses that I had bought for flying models. These were actually pretty good. They are distortion free, quite dark, and cover the sides too, giving good peripheral vision. As a bonus, they’ll fit over most prescription glasses (which I don’t have … yet).

What I don’t like about the Zurichs is that they are completely non-adjustable. I have a wide face (7 5/8 hat size), yet my ears seem to be closer to the front of my face than average. As a result, the temples of the Zurichs are too long, and the glasses were forever sliding down my nose. To add injury to insult, the useless temple tips were also angled too far inward, and with a headset on, they caused sore spots behind my ears. The nose pieces are also non-adjustable, making the glasses happiest on the lower, wider part of my nose, which is not where I wanted them.

I finally remedied all these problems by cutting off the temples just before the bend, drilling holes in them, and then using a cord to tie them on, with one of those I-don’t-know-how-to-tie-my-shoes sliders on the back behind my head.

I flew with the Zurichs for a while, but frankly, they’re not the greatest looking sunglasses in the world, and they also take up a lot of space in my flight bag, so I started looking for something better. (The newer Z2 style is a bit smaller and better looking, although I haven’t tried these or even seen them in person.)

Generic Outdoor Safety Glasses

I briefly tried a pair of wrap-around dark-tint safety glasses that I found at a pilot shop near Toronto for about $20. These had a tiny bit of distortion, but not so much as to be annoying. They also provided excellent peripheral vision due to their wrap-around design. The temples were adjustable, and thin and flat enough to fit under a headset. There was really very little wrong with these except that they were a bit too dark at times (when it was still too bright to not wear sunglasses). I gave up on these for flying, but now wear them as safety glasses when working outside on the farm on bright days.

Serengeti

I saw (and still see) Serengeti sunglasses advertised on a lot of pilot shop web sites, so I decided these must be something worth looking into. I purchased the Serengeti Velocity style at my local Sunglass Hut, pleased to see that they came with a 30-day satisfaction guarantee.

These were really nice sunglasses. Absolutely no distortion, glass lenses, lightweight frames, a nice tint, and photochromic to boot. They got their test flight on my first solo cross-country. They were perfect in every respect but one: they didn’t darken like they’re supposed to. Although they were darker than not wearing sunglassses, they were nowhere near as dark as “normal” sunglasses. The only time they darkened was when I got out of the plane to walk to the FBO to get my log book endorsed.

When I got back home, I did some research and found out that the darkening occurs in response to ultraviolet light. Since the amount of UV is proportional to the amount of visible light, this shouldn’t be a problem except for one little detail: most airplane canopies or windshields are opaque to ultraviolet light. As far as the Serengetis were concerned, the cockpit of my rented Cessna 152 was a darkened room (I wonder if Serengeti and the companies that sell them know this). The next day I returned them with no hassles. Too bad, because they were really nice glasses.

Although I haven’t tried them, Serengeti’s 555nm lenses might be a better choice. They are more neutral in colour and start out quite a bit darker than their “driver” lenses (15% transmittance instead of 24%), making them about right for flying as-is and getting darker when you step outside.

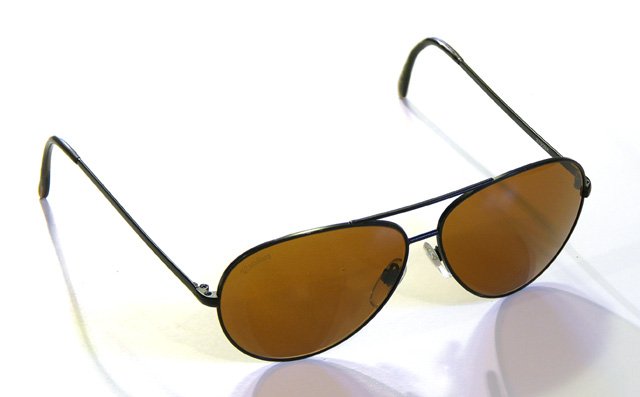

Roadmax Aviator Style Driving Glasses

These were my first glass sunglasses other than the Sergentis I owned briefly. They have a copper tint, and I bought them to use for both flying and driving. Although they were inexpensive ($35), they have optical quality ground glass lenses and reasonably well-made metal frames.

I flew with these for a while, and still do sometimes on really bright winter days, but for most flights, I find them a bit too dark, making the instruments difficult to see (especially my GPS). I wear them a lot while driving, although they do get uncomfortable after a few hours due to their weight (large glass aviator style lenses) and hard plastic nose pads.

Sadly, these glasses are no longer made. This is unfortunate since they were amazingly good for their low price.

Randolph Engineering

My next try was Randolph Engineering. The Randolph Aviator glasses have grey glass lenses that let through 15% of the light, which is supposed to be about optimal. Randolph makes glasses for the US and other air forces, so I figured they’d be worth a try. Their Aviator style, with straight temples and small-ish square-ish lenses didn’t appeal to me, so I ordered their Concorde style instead (more of a traditional aviator style). Putting form before function, I chose the gold frames. Nothing says “pilot” more than gold-rimmed aviator sunglasses (except maybe a watch with more dials than the panel of the plane you’re flying).

I mostly loved these glasses. They were exactly the right darkness, distortion free, didn’t change the colours of things (which the Serengetis did a little bit), and stayed where I put them (after some adjustment of the frames). My only complaint was the gold frame; I found it distracting.

After about 9 months, they slipped out of my pocket and a couple of very tiny scratches appeared in the left lens. My almost perfect sunglasses were now less perfect. I decided to write to Randolph to ask what it would cost to replace the lens, and maybe change to black frames at the same time. Even though I made it clear that the scratches were my own fault, the nice lady at Randolph USA told me to send them in, and they’d send me a new pair. I did, and they did! I’ve been wearing my perfect black-framed Randolph Concorde glasses ever since.

Coloreyes

A couple of years ago, I read about a new kind of sunglasses called Coloreyes. Reading the materials on their web site, I was very intrigued, and also a bit skeptical. Their scientific data is a bit confusing, as it seems to imply that the glasses amplify light while at the same time attenuating it. They also claim that the lenses enhance colour at opposite ends of the spectrum, leaving the middle somewhat untouched, increasing colour contrast.

Then, at the Canadian Aviation Expo in 2005 (and again in 2006), I got to try a pair on. I found that they did increase colour contrast, but I found the effect a bit disconcerting. Recently I’ve had the opportunity to try a pair with the smoke grey tint, and found that I quickly got used to them.

They are a bit darker than my Randolphs, but I found that the increased colour contrast made up for this, preserving visual accuity, although I do have to take them off earlier in the evening than the Randolphs. They also have more of a curve to them, meaning that less light can get in from the sides to cause reflections. The effect these glasses have on colours is very different from other glasses; they make reds and blues look more saturated, while leaving colours in the middle of the spectrum (like green) more or less untouched.

These glasses are also extremely light in weight, and the super thin temples work well with a headset. And they stay where I put them, probably due to a combination of the light weight and the head hugging temples. My only complaint is that unlike most of the other glasses reviewed here, the Coloreyes don’t fold flat, so they come with a fairly large case.

Principles

I’ve done a lot of reading about sunglasses for aviators, and here are are some of the principles I’ve gleaned:

• Avoid polarized sunglasses. Unlike good non-polarized glasses, which greatly reduce glare, polarized glasses eliminate it. This includes those sparkles of light reflecting off nearby airplanes. Polarized glasses can also make some electronic instrumentation impossible to read, and some windshields either opaque or kaleidoscopic, depending on how you look at them. Finally, the view through polarized glasses changes as your head tilts relative to the horizon, which could induce vertigo during steeply banked turns.

• Glasses with a strong gradient can be dangerous in marginal VFR (or IFR) conditions, painting a false horizon on your field of view. It’s bad enough being in conditions where you can’t discern the horizon. It’s even worse if you’re fooled into thinking that you can.

• Photochromic sunglasses won’t darken in most aircraft unless you’re in an open cockpit.

• Don’t wear glass sunglasses in an open cockpit. They provide little to no physical eye protection. Even in an enclosed cockpit, impact resistant sunglasses could save the day in the event of a large bird strike.

• Grey lenses don’t distort colours. Copper lenses distort colours somewhat, and so-called blue-blocker lenses distort colour a lot. Too much colour distortion can interfere with things like reading approach slope lights, or light gun signals from the tower.

• There is some disagreement about the right amount of light transmittance. Conventional wisdom is that for a grey lens, it should be about 15%. This is also the level mandated by the U.S. military. However, some studies have shown that people are most comfortable with 5% to 10% transmittance, and others have shown that visual acuity suffers below 25% transmittance. There seems to be a trade-off between comfort and visual acuity. I find that my 15% Randolph lenses are sufficienty dark even on bright winter days, yet sufficiently light for overcast summer evenings.

Tints

The images below compare the shade and tint of the sunglasses discussed above (except the Serengetis, which I no longer have). All the photos were taken with the same aperture, exposure time, and white balance setting, so the results are representative of the effects of the sunglasses, assuming your monitor is properly calibrated.

Sample Scenes

These photos of a scene were taken through each pair of glasses, using the same white balance setting, but letting the camera choose aperture and exposure time. Thus, these images show only the effect on colour, not the effect on brightness, somewhat simulating our eyes’ adaptation to changing light levels. In short, these images are fairly representative of what you’d actually see.

References

1. Rash, Clarence E. and Manning, Sharon D. “For Pilots, Sunglasses Are Essential in Vision Protection”, Human Factors & Aviation Medicine Vol. 49 No. 4 (Jul-Aug 2002), Flight Safety Foundation, www.flightsafety.org.

2. Dully, Frank E. Jr., M.D. “Pilot’s Sunglasses: Mystique or Mandate?”, Human Factors & Aviation Medicine Vol. 37 No. 4 (Jul-Aug 1990), Flight Safety Foundation, www.flightsafety.org.

The Flight Safety Foundation articles require you to register, but registration is free. Their web site is an excellent resource for the safety conscious aviator (which we all should be).
